WP18-3 Mini Excavator
$22,000
Operation weight: 1,800kg
Bucket capacity: 0.03m³
Rated power: 10.2KW/14KW
Bucket capacity: 0.03m³
Rated power: 10.2KW/14KW
The WP18-3 Excavator is packed with standard features and comes as a complete package with all of the following extras: Hydraulic Thumb, 200mm Narrow Bucket, 300mm Bucket With Teeth, 400mm Bucket With Teeth, Ripper, 450mm Standard Bucket, 800mm Tilting Bucket, Auger with 200mm Drill, Hydraulic Quick Hitch, Spare Set of Filters, 12 Months Warranty, and Toolkit. Spare Parts and additional Filters available to order.

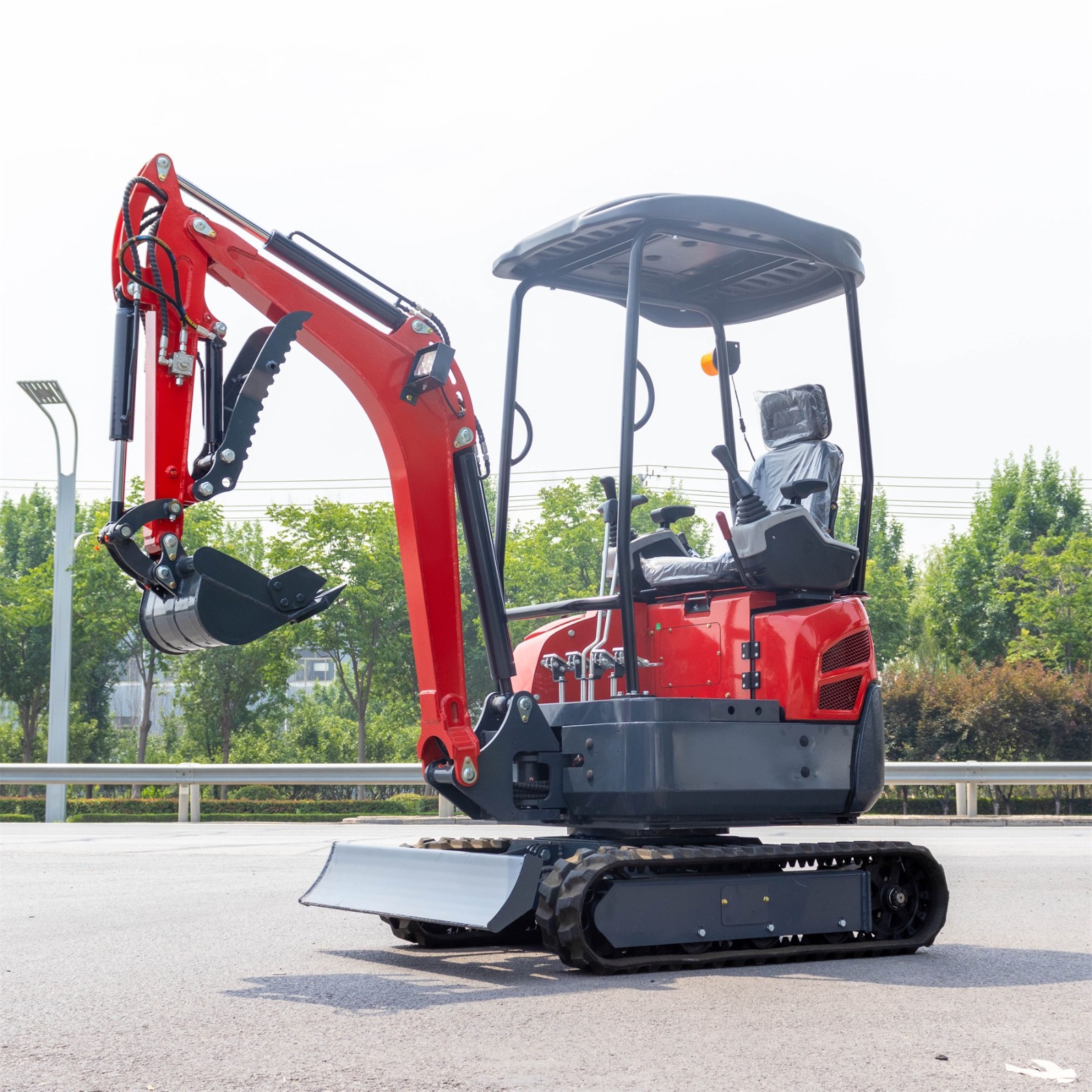

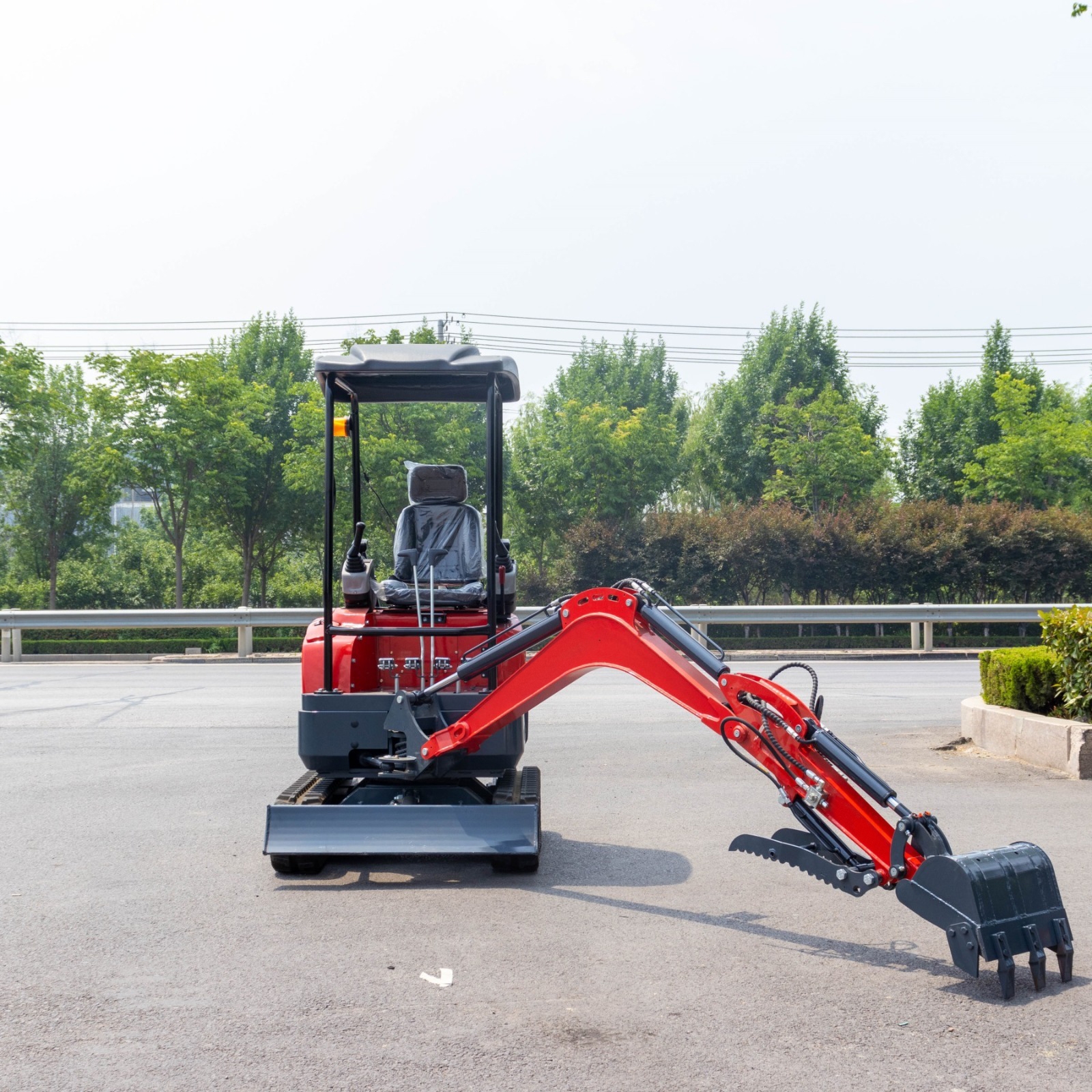

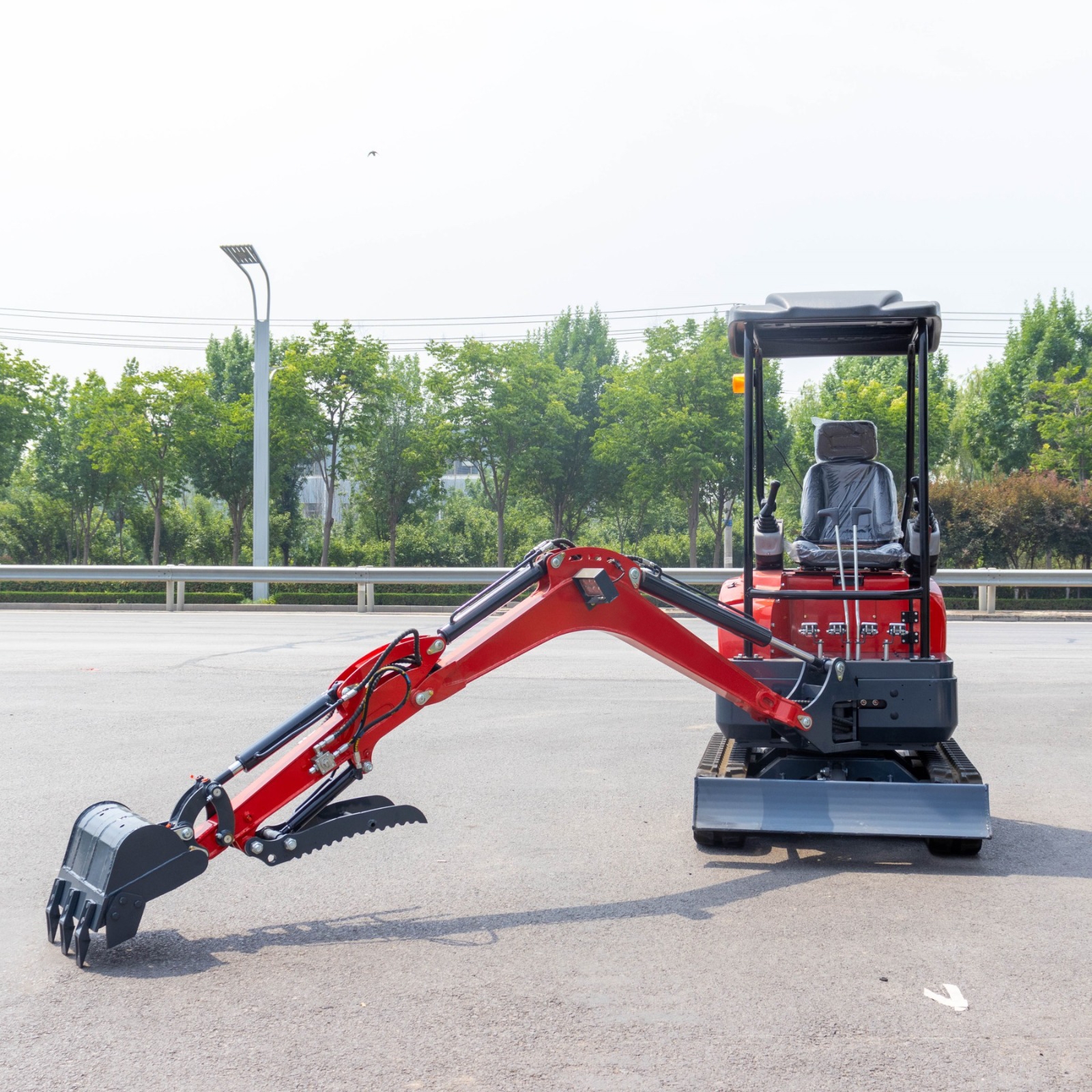

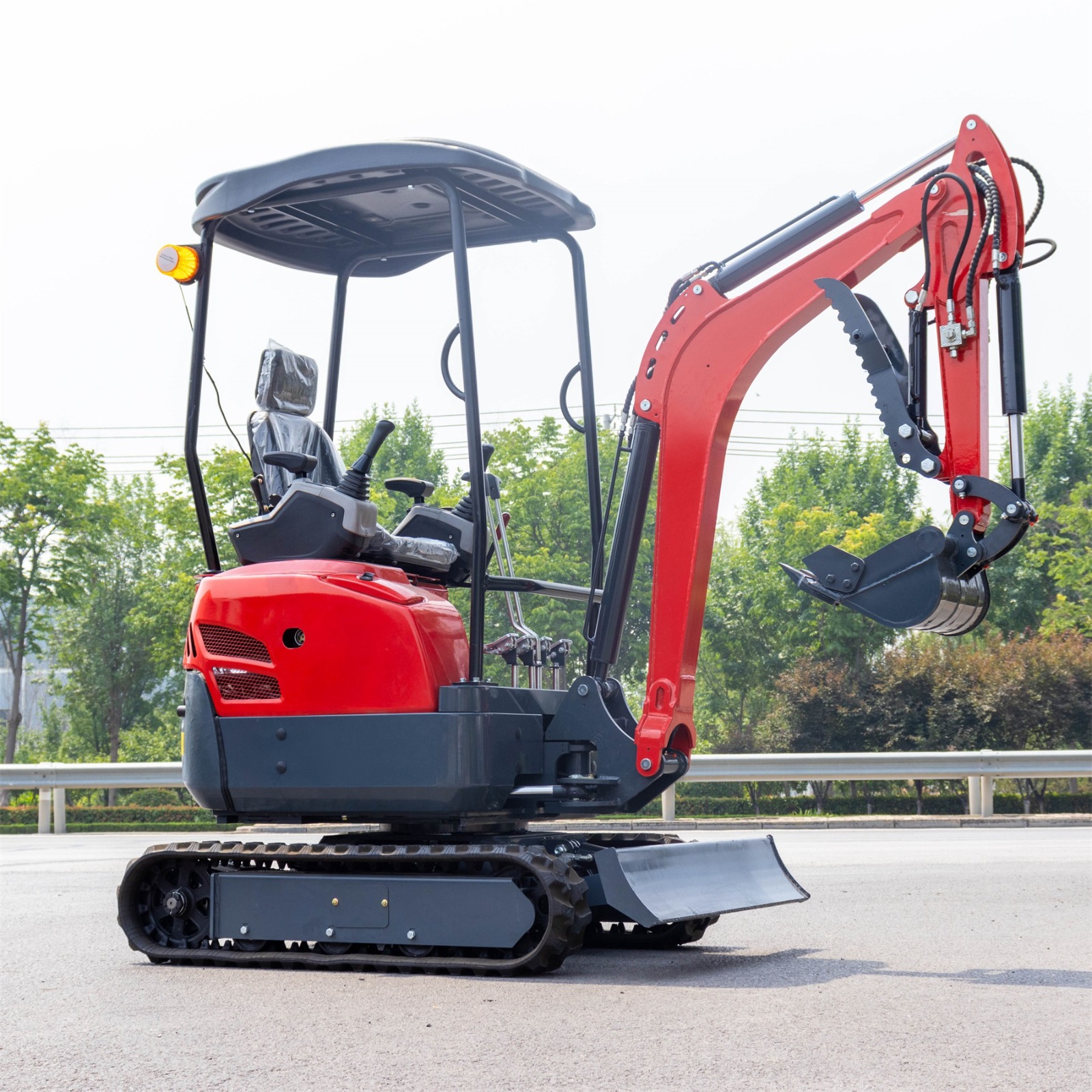

WP18-3 Mini Excavator
High working efficiency: The WP18 Mini Excavator is a robust, versatile machine designed to get into tight spaces. With Expandable Tracks and a Swing Boom, the WP18 is feature-packed and great value for money. Order yours today.
Key Features:
- Rotation Radius - great for operating in tight working spaces
- Euro 5, EPA, CE and ISO Certification
- Kubota D722, 10.2kw Engine

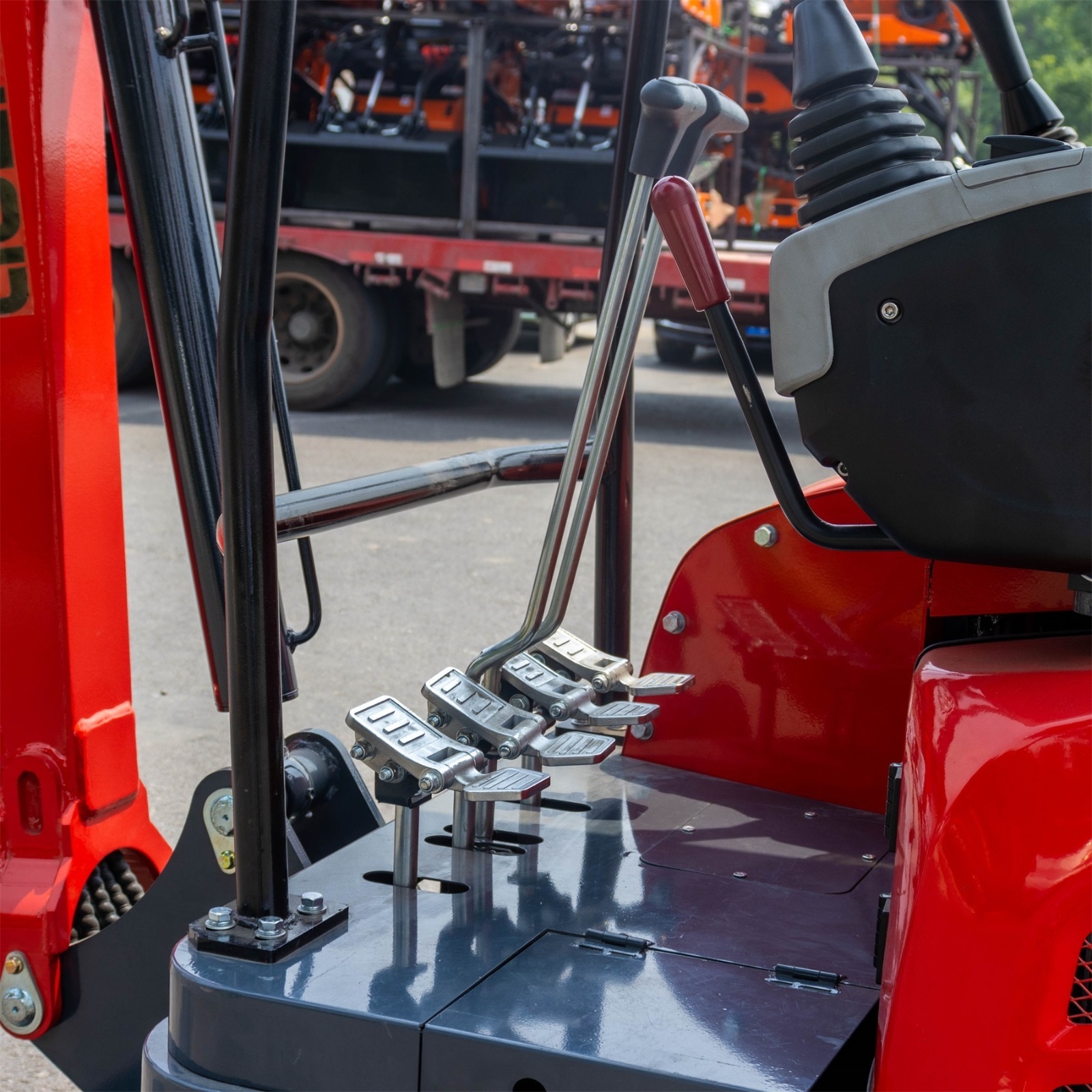

- Hydraulic Pilot
- Swing Boom - The standard configuration of this excavator includes the boom side swing function. Deflection angle (Left/Right): 35°
- Plunger Motor with high and low speed functions - Low speed provides more power for inclines, and high speed for normal driving.
- Tailless Design
- Rubber Tracks
- Handstand Arm
- Double Sided Throttle Valve
- Portable Operating Console
- Oil Drain Pipes for travel motor and swing motor
- Built-In Safety features
Parameter Details:
Paramater Details
Details/Dimensions:
Section | Measurement |
A. Overall Length (mm) | 4325 / 1655 |
B. Overall Width (mm) | 1100 |
D. Upper Width (mm) | 990 |
C. Overall Height (mm) | 2272 |
F. Standard Track Shoe Width (mm) | 180 |
G. Track Gauge (mm) | 920 |
H. Min. Ground Clearance Height (mm) | 119 |
I. Tail Turning Radius (mm) | 790 |
J. Track Ground Length (mm) | 1050 |
K. Track Length (mm) | 1545 |
Working Range:
Work Motion | Measurement |
a. Max. Digging Height (mm) | 2580 |
b. Max. Unloading Height (mm) | 1637 |
c. Max. Digging Depth (mm) | 2060 |
d. Max. Digging Distance (mm) | 3160 |
e. Min. Turning Radius (mm) | 1711 |
f. Max. Height at Min. Turning Radius (mm) | 2048 |
Boom Swing Angle Left (°) | 75 |
Boom Swing Angle Right (°) | 45 |
Performance Parameters:
Parameter | Measurement |
Working Capacity (kg) | 1800 |
Bucket capacity (m³) | 0.03 |
Power (kw) | 10.2 / 14 |
Swing Speed (RMP) | 12 |
Gradeability | 30 |
Engine | KUBOTA D772 10.2kw |
Main Valve | BEIFANG |
WP18-3 Roof and Cab Options Available
Multi-Purpose
There are 30+ types of attachments that can be connected. Let us know if you're after particular excavator implements with your WP18-3 Excavator.
Several implement options for the WP18-3 Excavator
