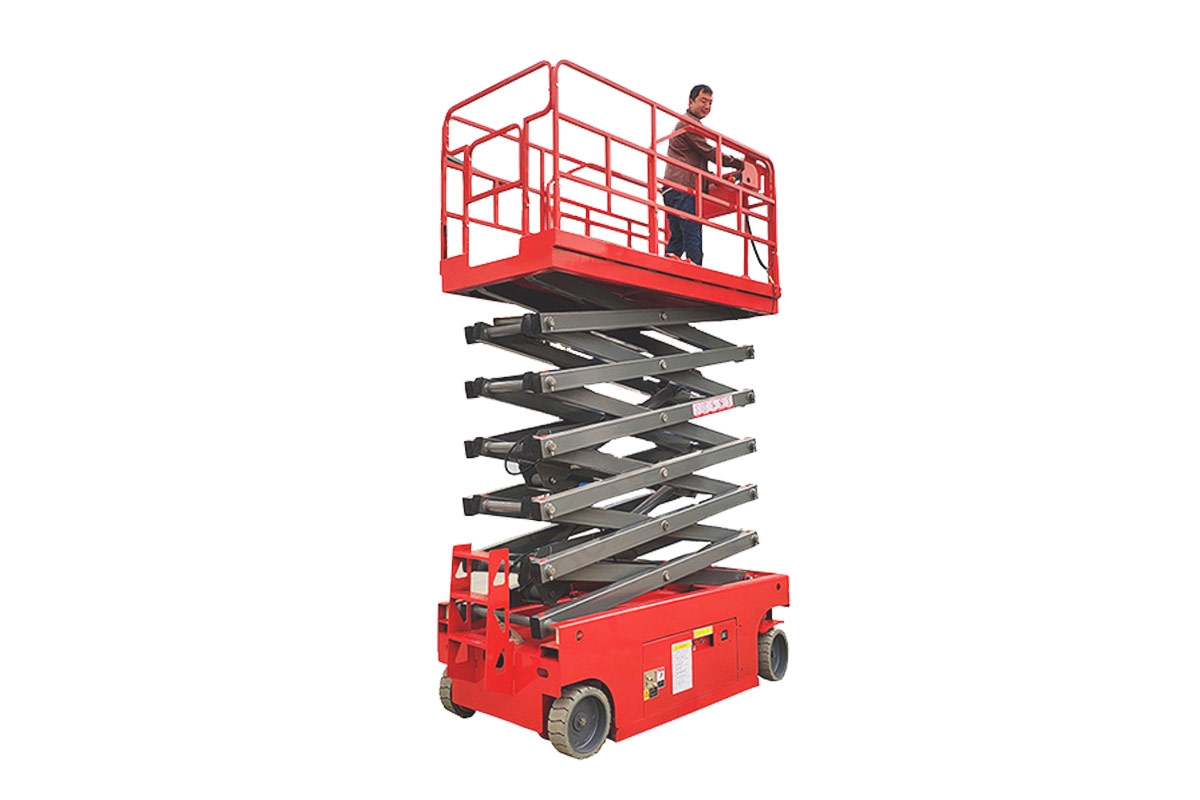

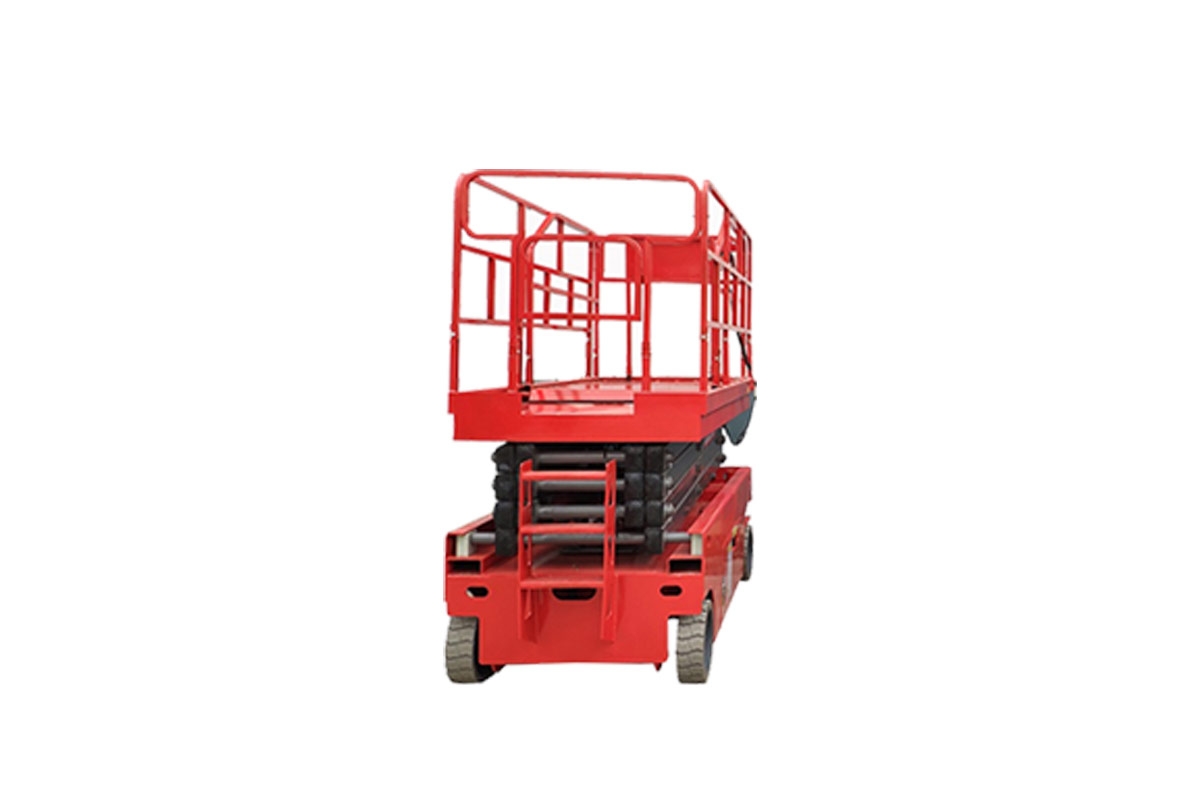

HW0.3-14 Aerial Work Platform

From $130,000
Working load: 320Kg
Working height: 16m
Platform height: 14m
The aerial work platform makes many difficult and dangerous tasks easier, such as indoor and outdoor cleaning (ceilings, curtain walls, glazing, eaves, awnings, chimneys, etc.), billboard installation and maintenance, street lights And the installation and maintenance of traffic signs. This high-altitude lifting platform is characterized by its small size, flexibility and convenience. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, you can save your expenses and valuable time.
The Aerial Work Platform Has The Following Features:
1.Safety certification Compliance with European certification All machines are covered by insurance.
2.HWZG0.3-12 scissor self-propelled aerial work platform with automatic walking function, able to walk quickly and slowly under different working conditions..Only one person can operate the machine to complete the lifting, advancing, retreating, steering and other actions in the aerial work operation, which greatly improves the working efficiency compared with the traditional hydraulic platform.Reduce the number of operators and labor intensity.It is especially suitable for a wide range of high-altitude continuous operations such as airport terminals, stations, terminals, shopping malls, stadiums, residential properties, factories and mines.
Model
HW0.3-10
HW0.3-12
HW0.3-14
Safe working load
320kg
320kg
320kg
Safe working load of extension platform
113kg
113kg
113kg
Maximum number of staff
2
2
2
Maximum working height
12m
14m
16m
Maximum platform height
10m
12m
14m
The whole machine length
2600mm
2600mm
3200mm
The whole machine width
1170mm
1170mm
1500mm
The whole machine height ( Unfolded fence )
2520mm
2640mm
2.21mm
The whole machine height (fence folding )
1820mm
1940mm
1940mm
Working platform size ( length * width )
2400mm*1170mm
2400mm*1170mm
2800mm*1400m
Platform extension size
0.85m
0.85m
0.7m
Minimum ground clearance  ( Collapsed state )
0.7m
0.7m
0.1m
Minimum ground clearance  ( Lifting state )
0.019m
0.019m
0.019m
Wheelbase
1.89m
1.89m
1.89m
Minimum turning radius (Inside wheel )
0
0
0
Minimum turning radius ( Outside wheel)
2.20m
2.20m
2.20m
